Autel MaxiSYS ADAS LDW2.0T Tablet Calibration Package + MS909 Tablet

Autel LDW2.0T ADAS Standard Calibration Frame + MS909 Tablet

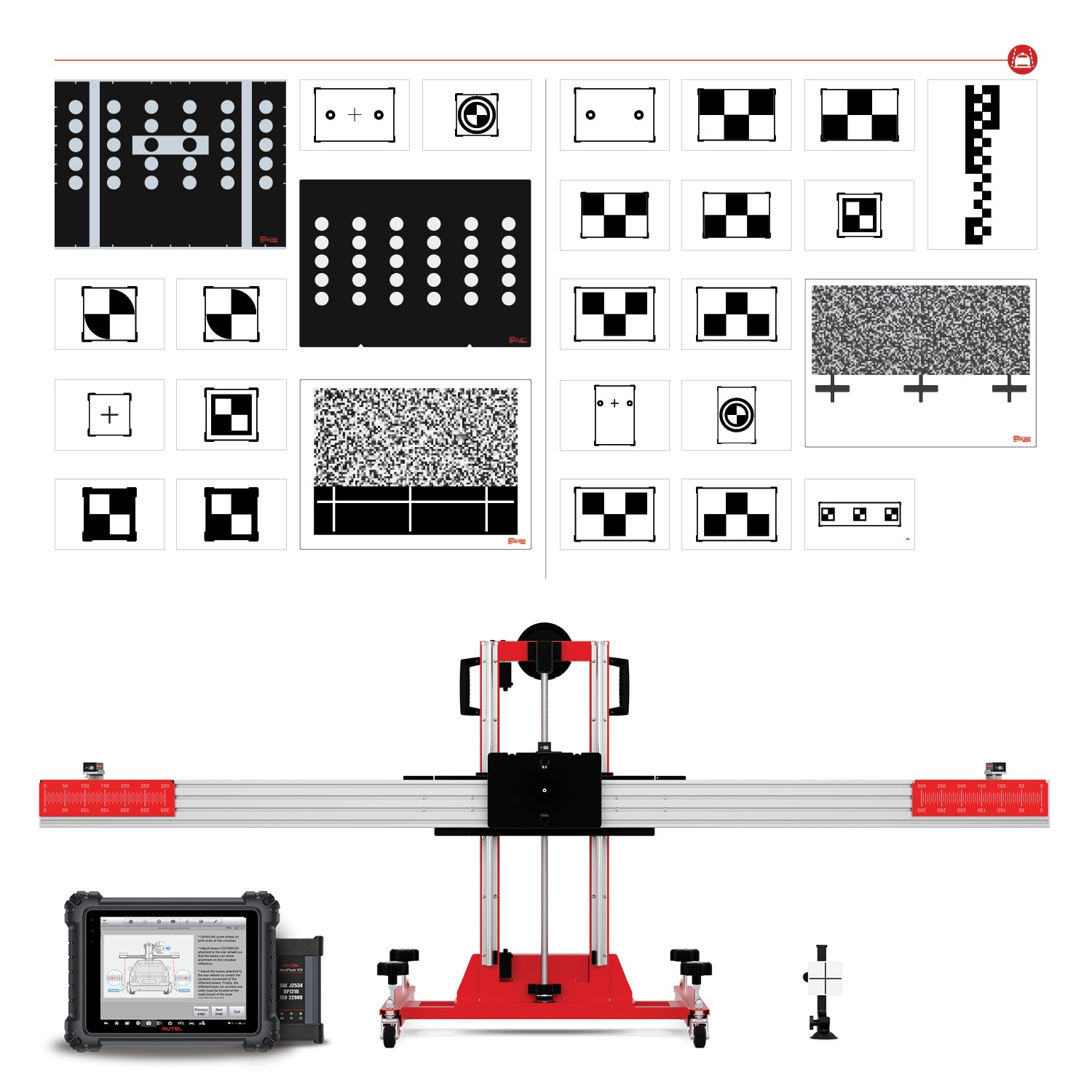

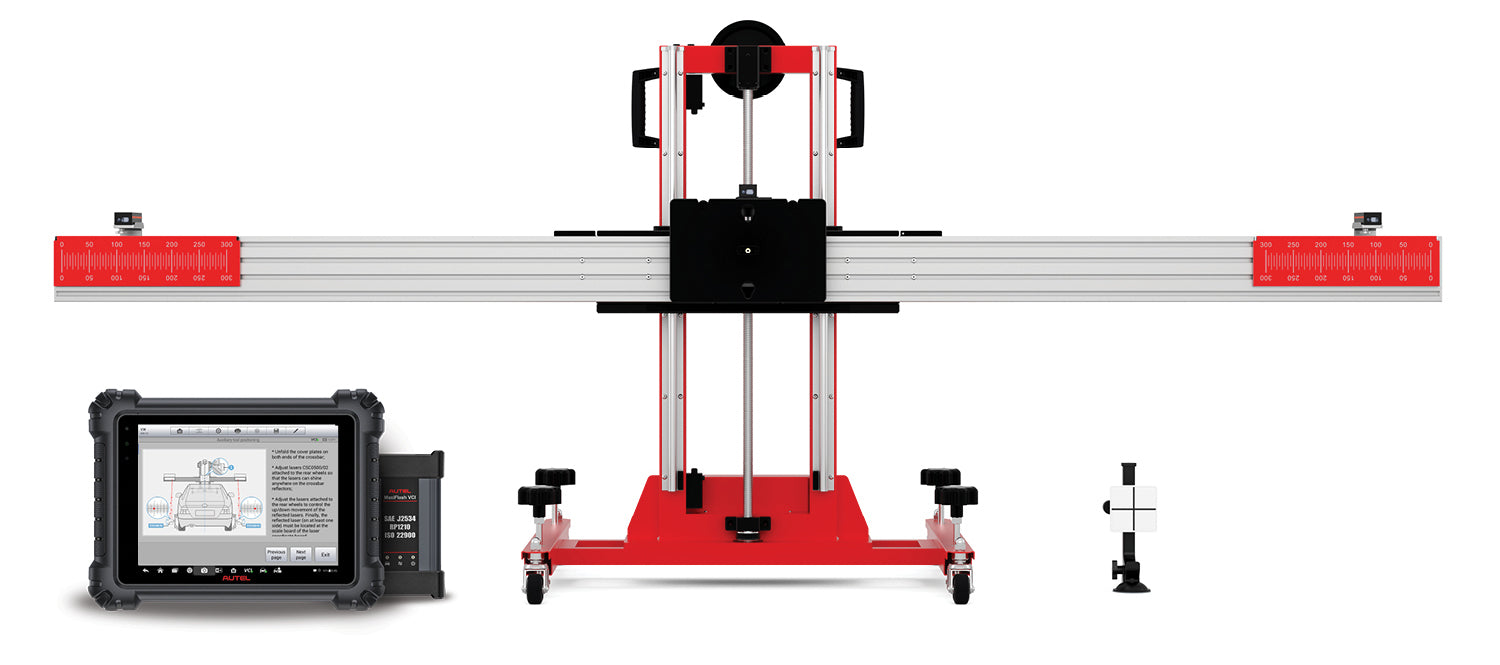

The Autel ADAS LDW2.0T Package includes a Standard Calibration Frame, the MaxiSys MS909 Tablet, ADAS Software Upgrade for calibration of LDW systems on Alpha Romeo, Honda, Genesis, VW, Mercedes, Hyundai/Kia, Nissan, Infiniti, Mazda, Mitsubishi, Mazda, Subaru, Toyota/Lexus vehicles. Includes Pattern Board, Wheel Clamps and Laser Crossbar; Includes DIGITALADAS add-on for faster frame placement with one person; Includes LDW Target Case; Includes Target Board Holder and Includes a One-Year Limited Warranty.

• Flexible - Easily Interchangeable Calibration Components with Power Adjustable Frame
• Precise - Fine-tuning Hand Knob and Laser Positioning for Millimeter Ruler
• Adjustable - Even on an uneven floor, the calibration frame can be easily raised or lowered to be level with the vehicle


Hardware Features

• Precise millimeter-level accuracy: crossbar's minor adjustment knob and laser positioning
• Precise laser on sliding plate to locate radar and front camera
• Flexible power adjustable lift
• Flexible portable and easy for storage patter cloth and pattern board
• Integrated modular frame assembled with accessory tools for calibration
• Integrated easy to move pattern board holder, pattern cloth, and pattern board


Software Features

• Smart calibration procedure
• Smart compatible use with leveling lift adjustment
• Accurate regular updates of lates OE-level diagnostic and calibration software
• Accurate correct calibration
• Intuitive tutorial graphics and step-by-step instructions
• Intuitive pre-scan and post-scan reports (ADAD module identification, calibration)
• Complete wide vehicle coverage
• Complete (7) calibration functions fixed and mobile calibrations

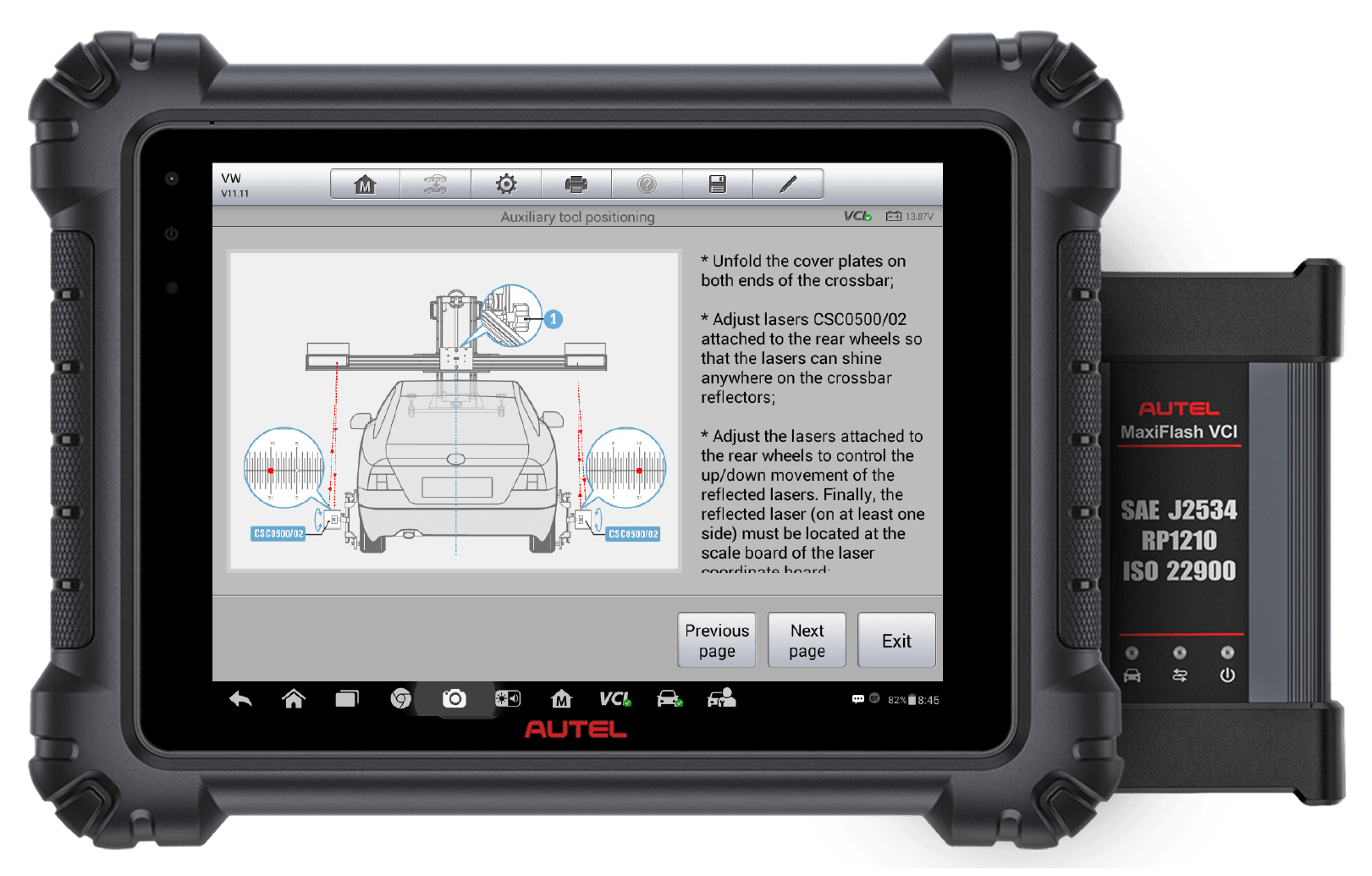

MaxiSys 909 Tablet Features

• Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicle makes, including supercars
• Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
• Automatic system and software updates with real-time push message notifications via internet
• Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and errors
• One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized.
• Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes


Specifications

• Shipping Dimensions: 54" H x 105" L x 42" W
• Shipping Weight: 676 lbs.

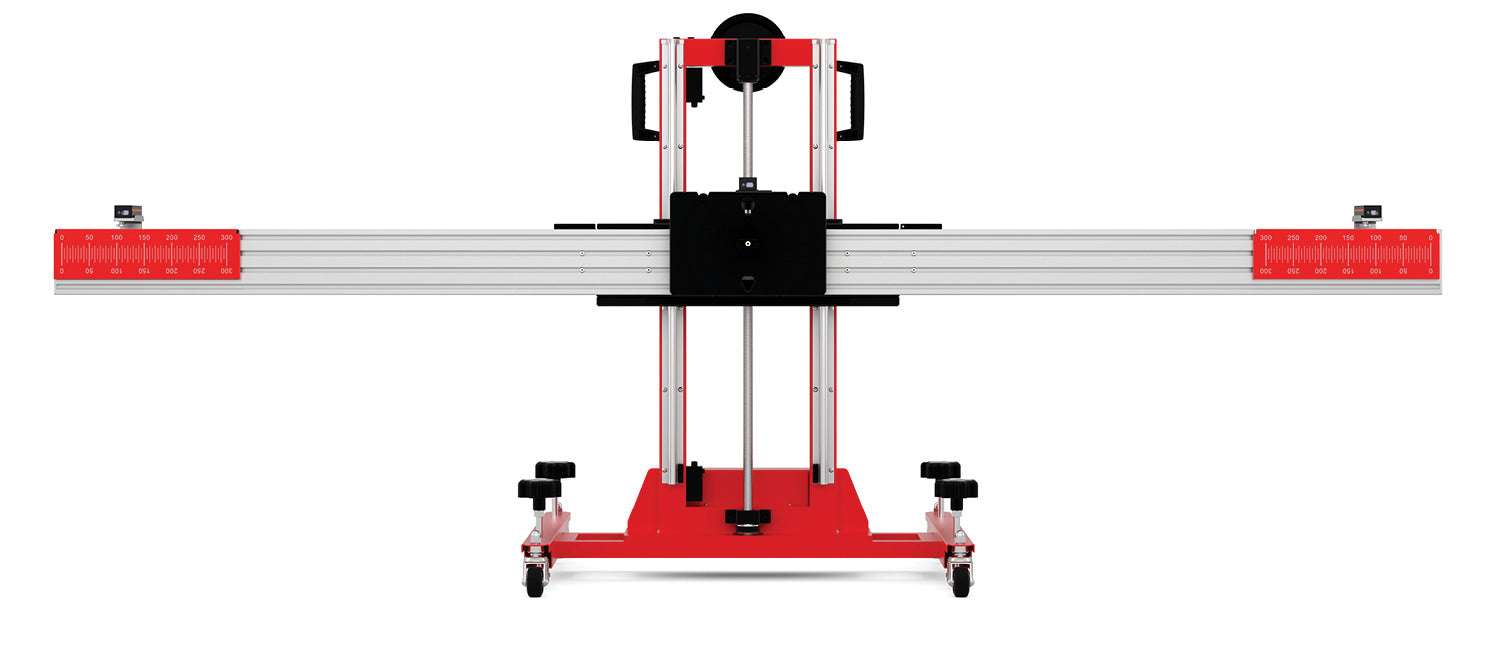

Frame and Pattern Board Specifications

• Calibration Frame Dimensions (WxDxH): 2510mm (98.82") x 714mm (28.11") x 1480-2105 mm (58.27-82.87")
• Calibration Frame Weight NW: 74.5 kg (164.24 lb.)
• Calibration Frame Weight GW: 152kg (335.1 lb.)
• Pattern Board Size (LxW): 1360mm (53.54") x 960mm (37.80")
• Crossbar Length: 2510mm (98.82")
• Measurement Range of Crossbar's Height Min: 350mm (13.78")
• Measurement Range of Crossbar's Height Max: 950mm (37.40")
• Measurement Range of Pattern Board's Height Min: 1000mm (39.37")
• Measurement Range of Pattern Board's Height Max: 1600mm (62.99")
• Rated Power: 24V, 3A
• Laser Rated Power: 3V, 25mA
• Laser Battery Type: AA 2x1.5V
• Calibration Frame Working Temp: 0℃ to 50℃
• Calibration Frame Storage Temp: -20℃ to 60°C
• Laser Class: Class 2
• Certification: CE, FCC, RoHS


MaxiSYS MS909 Tablet Specifications

• Operating System: Android 7.0
• Processor: Samsung Exynos 8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
• Memory: 4GB RAM & 128GB On-board Memory
• Display: 9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen
• Connectivity: WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO)
• Connectivity: BT v.2.1 + EDR
• Connectivity: GPS
• Connectivity: USB 2.0 (TWO USB HOST Type A, ONE USB mini device)
• Connectivity: HDMI 2.0
• Connectivity: SD Card (Support up to 256GB)
• Camera (Rear): 16 Megapixel, Autofocus with Flashlight
• Camera (Front): 5.0 Megapixel
• Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)
• Audio Input/Output: Microphone
• Audio Input/Output: Dual Speakers
• Audio Input/Output: 3-Band 3.5 mm stereo/standard headset jack
• Power and Battery: 15000mAH 3.8V lithium-polymer battery
• Power and Battery: Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C
• Input Voltage: 12V/3A Adapter
• Operating Temperature: 0 to 50°C (32 to 122°F)
• Storage Temperature: -20 to 60°C (-4 to 140°F)
• Dimensions (W x H x D): 304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")
• Weight: 1.66kg (3.66 lb.)
• Protocols: DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

LDW 2.0T Calibration Frame and Accessories Assembly

Volkswagen LDW Calibration Procedure Instruction

Honda Lane Departure Camera Calibration Instruction

ADAS First Time Buyer Brochure

ADAS 2.0 Comparison Chart

ADAS 2.0 - Different Kits

Calibration Frame Assembly Instructions

Crossbar Assembly Instructions

Pattern Board Assembly Instructions

Target Board Holder Assembly Instructions

• Shipping: All orders will be processed and shipped within 1 or 2 business days upon payment not including weekends and based on the UPS delivery service requested.
• You will receive an email confirmation with tracking information as soon as your order is processed and shipped.
• All orders placed within the United States of America will ship by UPS services allotted on gtglass.com.
• All orders shipping to international addresses will ship via UPS International Economy. All international orders outside the United States of America are subject to customs, duty taxes, and brokerage fees if applicable.
• Returns: All Sales are Final. Returns and exchanges are accepted only if: 1) The wrong product was sent. 2) Any or all of your products were damaged in transit by the shipping carrier. or 3) A warrantied item is factory defective. See Terms of Service Link below for more details.
• Warranty: Warranty is extended to hand tools and power tools. All disposable and consumable supply items are not subject to warranty coverage. Each hand and power tool is warrantied to be free of defects from workmanship and materials for the period of 1 year from the date of original purchase.
